Primary - Site Relationships

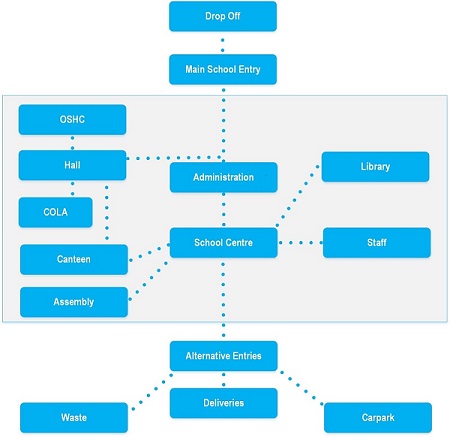

The diagram below illustrates the desirable relationships between the access/egress to a school site and between the main operational units and areas that form the central functions of a school. Relationships between other school facilities are indicated in the relevant learning and support unit section.







PS601 Administration Unit PS604 Canteen Unit PS607 Assembly Court PS501 Library Unit PS602 Staff Unit PS401 Home Base Unit PS601.91 Entrance Zone PS301.01 Entry Vestibule PS610.17 Services Zone DG96 Civil Works DG96 Civil Works DG96 Civil Works PS613 OSHC PS503 Communal Hall PS504 COLA
PS601 Administration Unit | PS604 Canteen Unit | PS607 Assembly Court | PS501 Library Unit | PS602 Staff Unit | PS401 Home Base Unit | PS601.91 Entrance Zone | PS301.01 Entry Vestibule | PS610.17 Services Zone | DG96 Civil Works | DG96 Civil Works | DG96 Civil Works | PS613 OSHC | PS503 Communal Hall | PS504 COLA
