PS605.11

Bulk Store Room

The Bulk Store Room is a minimum of 16m² for the storage of bulk goods. A small work desk and basin is provided for the General Assistant.

Room Relationships

This space is found in the Storage Unit. This room should have easy access for deliveries.

Technical Data

Acoustics N/A	Ceiling ACC ACOUSTIC CEILING TYPE Standard ceiling Refer to DG / CEILING	Communications N/A
Cooling FAN FAN Fan required. Refer to DG / COOLING POLICY / CEILING / WALL FANS MC MECHANICAL COOLING Provide mechanical cooling where regionally appropriate. Refer to DG / COOLING POLICY	Doors DT DOOR TYPE Minimum 1m wide door Refer to DG / DOORS	Drainage SD SANITARY DRAINAGE FIXTURES 2 drainage outlets Refer to DG / DRAINAGE
Fire Protection PFE PORTABLE FIRE EXTINGUISHER/ BLANKET Portable fire extinguisher/fire blanket - to comply with NCC. Refer to DG / BUILDING REGULATIONS & BUILDING CODE OF AUSTRALIA / SERVICES AND EQUIPMENT	Floor FF FLOOR FINISH Steel troweled concrete Refer to DG / FLOOR FW FLOOR WASTE Floor waste(s) are to be included with falls in floor. Refer to DG / DRAINAGE (& TRADE WASTE) OTH FLOOR - OTHER Minimum threshold at door to enable equipment access. Falls to outside. Refer to DG / FLOOR	Gas N/A
Heating H HEATING Provide heating where regionally appropriate. Refer to DG / HEATING	Illumination LUX LUX LEVEL 160 lux Refer to DG / LIGHTING LC LIGHTING CONTROL Lighting control requirements as outlined in Design Guide. Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed differently (key to differ) Refer to SG455 / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Maintenance & Cleaning Refer to SG455 / DOOR HARDWARE / KEYING
Light N/A	Planning m^2 AREA 6m2 Refer to DG / AREA XY PROPORTION Minimum depth 3m Refer to DG / AREA	Power GPO GENERAL POWER OUTLETS 1 double socket outlet Refer to DG / POWER
Security D SECURITY LEVEL D Category D - Moderately High Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS	Signs DSF DOOR SIGNAGE Door signage required. Suggested text "General Assistant" Refer to DG / SIGNS	Ventilation OTH EXHAUST - OTHER Refer to Design Guide for specific ventilation requirements. Refer to DG / VENTILATION
Wall OTH WALL - OTHER Splashback 450mm high to basin/sink Refer to SG / LINING IR IMPACT RESISTANCE Impact resistant walls are recommended. Refer to DG / FABRIC	Water CW COLD WATER Required to 1 x basin, 1 x hose cock. Refer to DG / WATER	Windows N WINDOWS - N Windows are not required for this space. Refer to DG / WINDOWS VP VISUAL PRIVACY Visual privacy is required from other spaces. Refer to DG / WINDOWS

Suggested Fixtures

Bsn, Basin
SA 600 metal adjustable shelving unit
CFL, Cabinet for Flammable Liquids, 250 litre

Suggested Furniture

ID	Description
B-86	Bench, Workshop Demonstration	View image

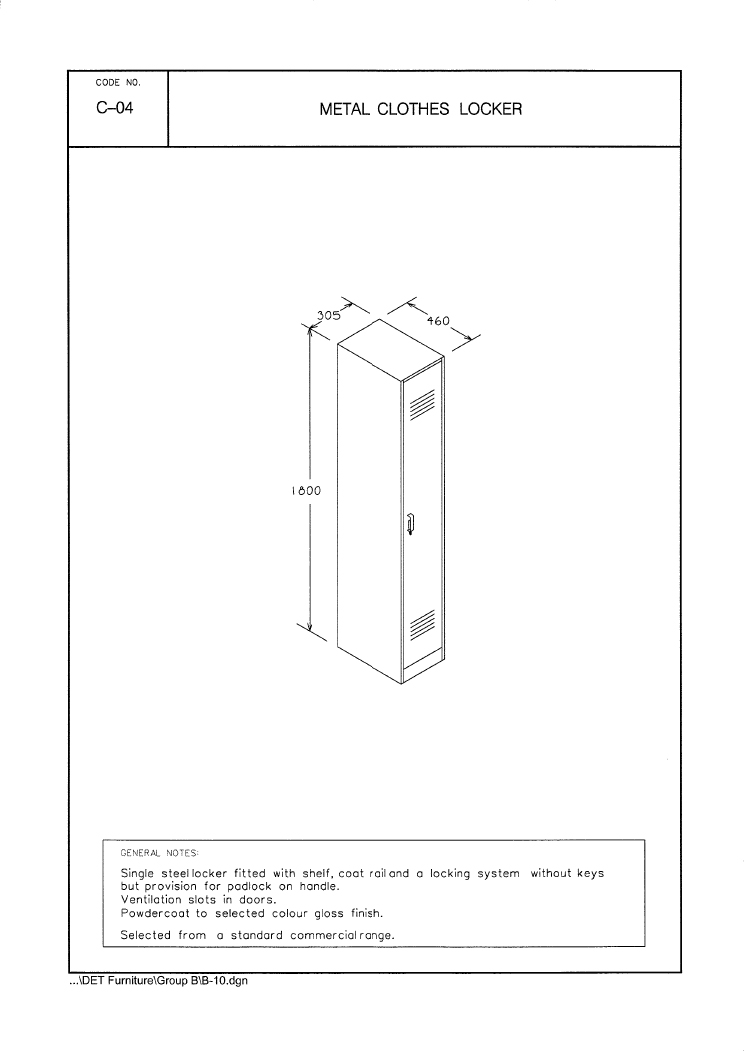

C-04	Cupboard, Clothes Locker	View image

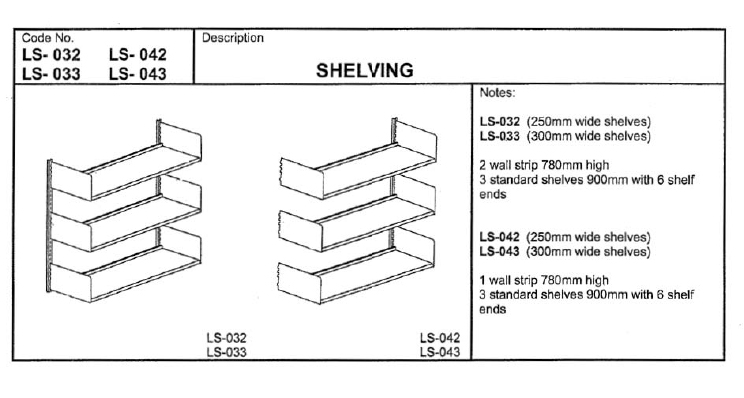

LS-033	Fixed Shelving, 800mm, Wall Fixed, Starting Bay with 3 Std 300mm Shelves	View image

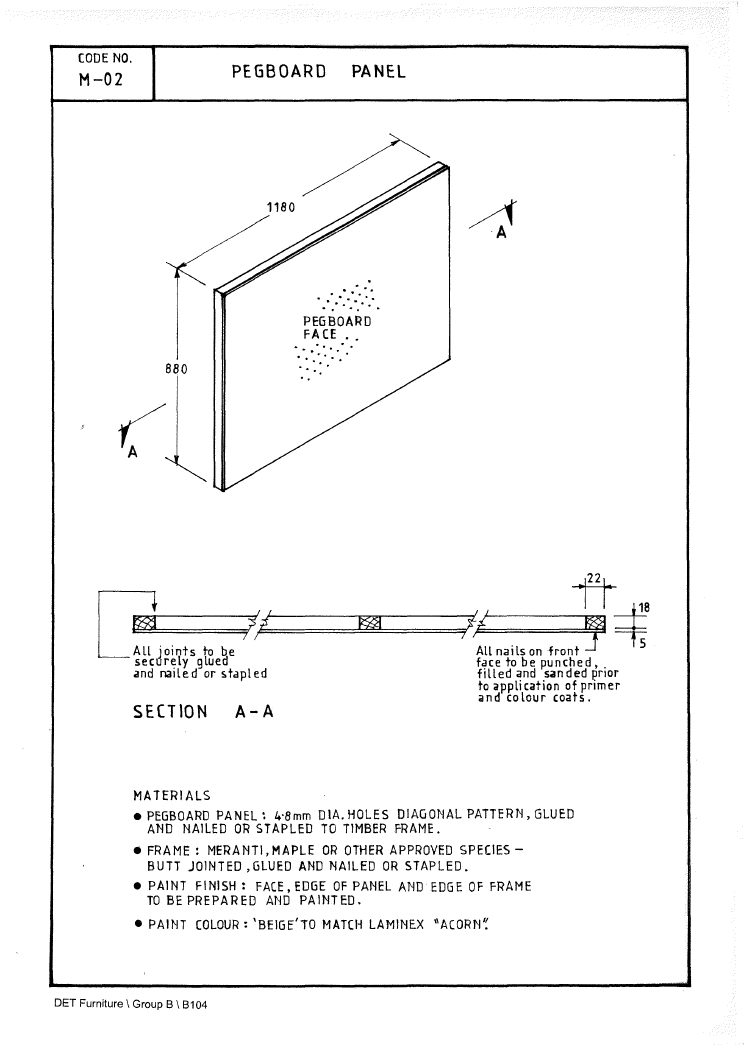

M-02	Fixed Pegboard Panel	View image

S-55	Chair, Plastic F, Postura (Primary) (445mm height)	View image

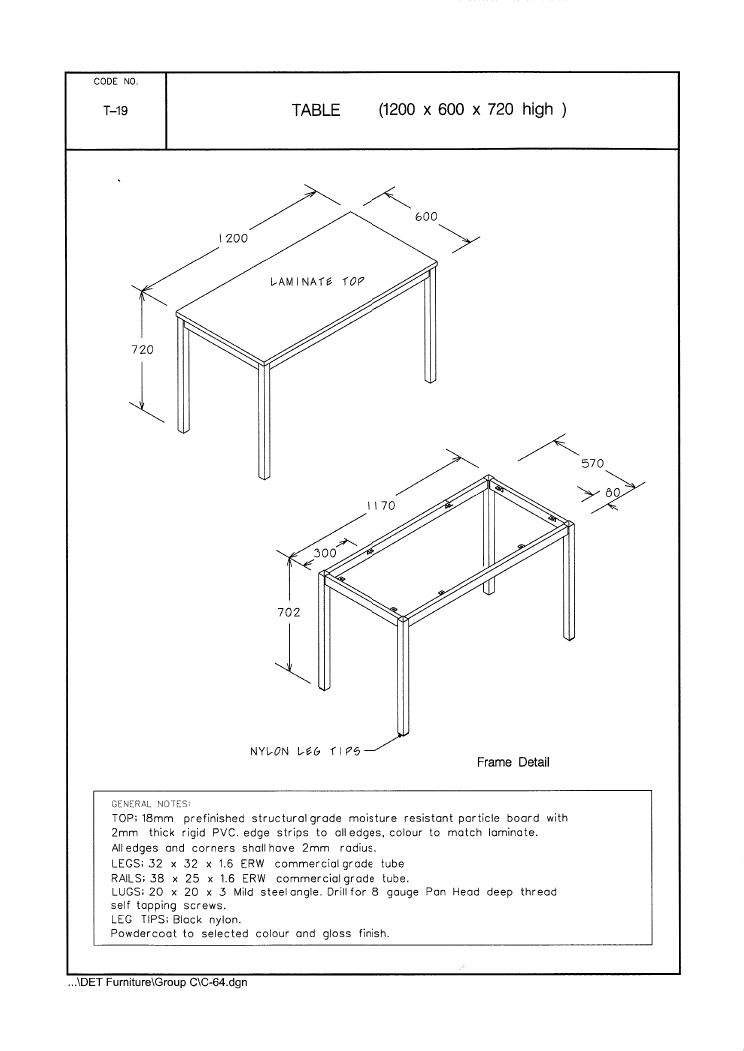

T-19	Table, Utility, F (720mm height)	View image

Sample Plans & Details

PS605.11 Bulk Store

ps605-11.pdf

ps605-11.pdf (225 KB)

PS605.11 - Bulk Store Room (General Assistant)
